JYB-KO-PAHG HART type pressure transmitter is a pressure transmitter with a protective shell design, LED display, HART communication, which can communicate with HART communicator and any host system that supports HART protocol. It adopts international advanced imported sensor technology and is suitable for industrial site process control pressure measurement.
The JYB-KO-PAHG is a HART‑enabled pressure transmitter designed for industrial process pressure measurement. It offers a protected housing, LED display, and compatibility with HART handhelds or PC configurators.

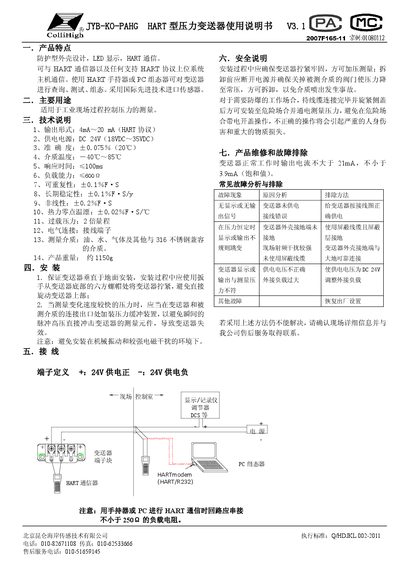

The manual covers product features, main applications, technical specifications, installation steps, wiring terminal definitions, safety precautions, and detailed maintenance and fault‑diagnosis procedures. This manual is written in Chinese.
| Output current | 4 mA – 20 mA (HART protocol) |
|---|---|
| Supply voltage | DC 24 V (18 VDC – 35 VDC) |
| Temperature range | ‑40 °C – 85 °C |
| Response time | ≤100 ms |
| Load capability | ≤600 Ω |
| Repeatability | ±0.1 % FS |
| Measurement media | Oil, water, gas and other media compatible with 316 stainless steel |
The “+” terminal is 24 V positive supply and the “‑” terminal is 24 V negative supply.
The transmitter outputs a current signal from 4 mA to 20 mA according to the HART protocol.
Verify that the transmitter is powered, correct the wiring according to the wiring diagram, and ensure the power supply is 24 V DC.
