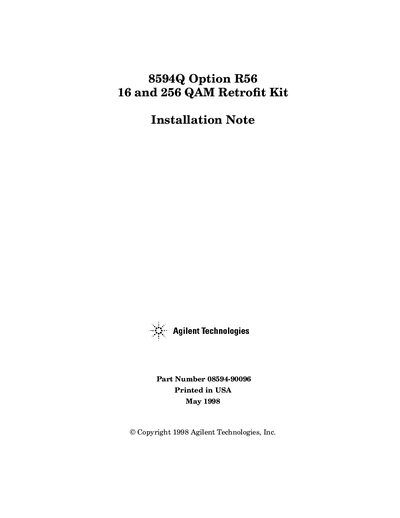

This document provides installation notes for Agilent Technologies' Option R56 16 and 256 QAM Retrofit Kit. The document includes safety notes and general safety considerations, reminding users to pay attention to safety during the installation process.
This Installation Note provides safety guidelines, a parts list, and step‑by‑step procedures for installing the 16‑ and 256‑QAM Retrofit Kit (Option R56) on an Agilent 8594Q Option 190 DVB‑C QAM Analyzer. It includes instructions for ROM replacement, DLP card installation, and verification of the new measurement software.
The document emphasizes safety precautions such as disconnecting power, using a static‑safe workstation, and handling hazardous voltages. After completing the hardware installation, users are guided through erasing the old DLP, loading the new DLP, and confirming proper operation with 16, 64, and 256‑QAM signals.
| EEPROM U10 | 08594-80048 |
|---|---|
| EEPROM U11 | 08594-80049 |
| EEPROM U12 | 08594-80050 |
| Update Information document | 5963-6043 |
Connect the analyzer to a known 16, 64, or 256‑QAM source and confirm that the constellations lock at each level; successful verification indicates the analyzer is ready for use.
