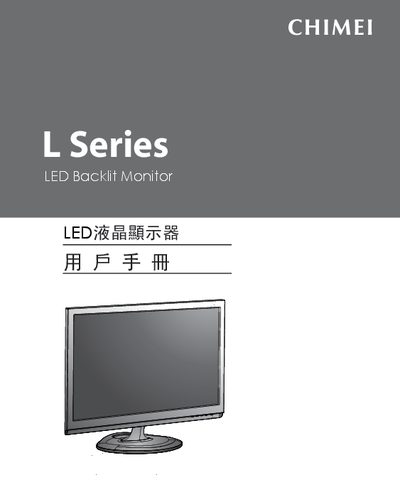

Chimei L Series LED Backlit Monitor User Manual

This manual introduces the functions and usage of LED LCD monitor.

Brand: Chimei
Category: Monitor
Document type: User Manual
Language: Chinese
Pages: 9
File format: PDF
File size: 1.9 MB
Published: 14 March, 2012
Updated: 30 September, 2023
MD5 checksum: CA69A904D1B49EC5B49C3E2E65A66BCF
PDF: Chimei L Series LED Backlit Monitor User Manual PDF

About this manual

This manual provides step‑by‑step instructions for unpacking, connecting power, video and audio cables, and configuring the monitor. It explains the OSD menu system, button functions, and automatic adjustment features.

Safety guidelines, FCC compliance information, and a troubleshooting section help resolve common issues such as power‑indicator problems or no‑signal conditions. This manual is written in Chinese.

What's inside

Unpacking and Package Contents
Power and Signal Connections
OSD Menu and Button Functions
Automatic Adjustment
Troubleshooting
FCC Compliance

Specifications

Maximum resolution (VESA 1600x900)	1600x900 @ 60 Hz
Maximum resolution (VESA 1920x1080)	1920x1080 @ 60 Hz
DC power input	12 V DC
Supported AC mains voltage	100/120 V or 220/240 V

Frequently asked questions

显示器出现 “No Signal Input” 时该怎么办？

确认信号线已正确连接到显示器和电脑，并检查电脑的显示设置。
