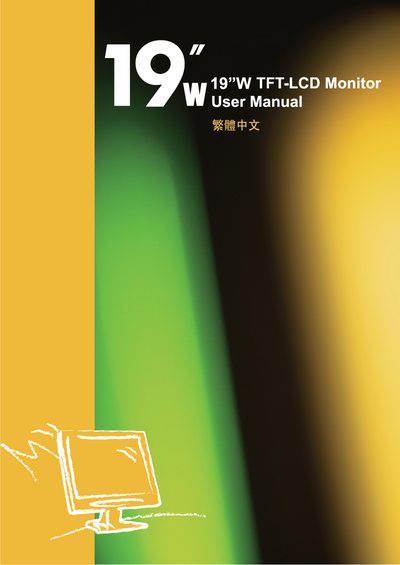

This document is an introduction and user guide for the CHIMEI CMV-940A/D LCD Monitor. The monitor features a 19-inch TFT LCD screen and supports multiple resolutions and display modes. It has an intelligent design and ergonomic features, providing clear and vibrant color images. The monitor also has automatic scanning controlled by a microprocessor and built-in memory for storing user adjustments.
This manual introduces the 19‑inch CHIMEI CMV-940A/D TFT LCD monitor, describing its features, ergonomic design, and compatibility with various video standards. It guides users through unpacking, installing or removing the base, adjusting screen position, connecting power and video cables, and configuring display settings.
Safety precautions, cleaning instructions, power‑saving modes, DDC support, front‑panel and OSD controls, troubleshooting tips, and full technical specifications are also covered, helping users maintain optimal performance and resolve common issues. This manual is written in Chinese.
| Display type | 19" TFT LCD |
|---|---|
| Display area (W x H) | 408.2 x 255.1 mm |
| Viewing angle (min) | 160° H / 160° V |
| Power input voltage | 100‑240 V AC |
| Power frequency | 50/60 Hz |
| Maximum resolution | 1440 x 900 @ 75 Hz |
| Brightness (typical) | 300 cd/m² |
| Interface | Analog RGB, Digital (dual‑input models) |
| Input connectors | 15‑pin D‑sub, audio, DVI‑D 24‑pin (dual‑input) |
| Physical dimensions (W×H×D) | 447 x 384 x 176 mm |
Tilt the monitor up to 20° or down to 5° using both hands on the screen edges.
Use a UL‑listed SVT power cord rated 10 A/125 V for 120 V AC installations.
Use an H05VV‑F power cord with a 10 A, 250 V plug that meets local safety standards.
Select the language option in the OSD menu and choose “回到工廠預設值” to restore factory settings.
