This document provides instructions for the installation, setup, and use of PHILIPS televisions, with a focus on safety precautions and usage guidelines.

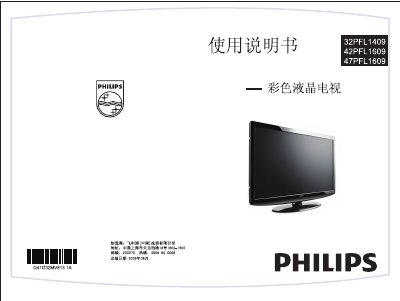

This manual provides safety precautions, installation guidelines, and setup instructions for Philips flat‑panel televisions model 32PFL1409, 42PFL1609 and 47PFL1609. It covers panel and rear‑panel controls, remote‑control preparation, connection options, menu navigation, and troubleshooting.
Detailed sections describe recommended wall‑mount or stand installation, power‑line handling, battery replacement for the remote, and the full list of supported video and audio inputs. Technical specifications such as screen size, power consumption, audio output and supported video formats are listed at the end of the document. This manual is written in Chinese.
| Screen diagonal | 32PFL1409: 800 mm, 42PFL1609: 1067 mm, 47PFL1609: 1194 mm |
|---|---|
| Power supply | 200‑240 V ~ 50 Hz, 1.5 A (32PFL1409) / 2.5 A (42/47PFL1609) |
| Power consumption (max) | ≤ 150 W (32PFL1409), ≤ 230 W (42PFL1609), ≤ 270 W (47PFL1609) |
| Audio output | 2 × 5 W speakers (32PFL1409) / 2 × 10 W speakers (42/47PFL1609) |
| Recommended resolution | 1360 × 768 @ 60 Hz, 1920 × 1080 @ 60 Hz |
The remote requires two 7‑size (1.5 V) alkaline batteries; rechargeable or Ni‑Cd cells must not be used.
The TV must be connected to a 220 V AC mains supply.
The television provides three HDMI input ports labeled HDMI1, HDMI2 and HDMI3.
