DVS-N1010 is a network video server that can digitize the analog signal of traditional cameras, and users can browse remote images in real time through the browser. It supports SD card remote recording, remote PTZ control, two-way voice, online software updates, online real-time AVI dynamic recording, and is compatible with Microsoft Windows Media Player.

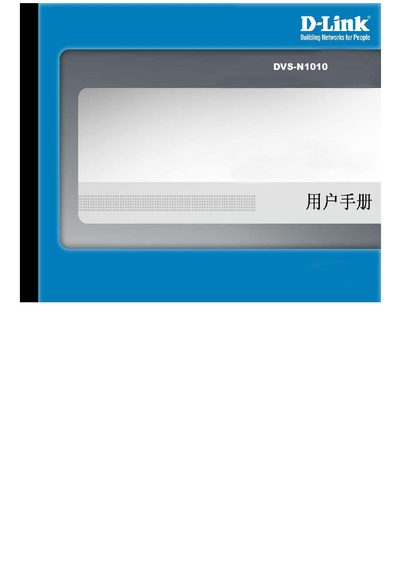

The manual introduces the DVS‑N1010 MPEG‑4 video server, describing its hardware specifications, included accessories, and overall functionality as a single‑channel video server with built‑in network capabilities.
It then details step‑by‑step installation, IP configuration (fixed, DHCP, PPPOE), video and audio settings, SD‑card recording, remote PTZ control, system backup, firmware updates, and troubleshooting procedures. This manual is written in Chinese.
| CPU | ARM9, 32‑bit RISC |
|---|---|
| RAM | 64 MB |
| ROM | 8 MB |
| Video input | 1‑ch BNC (CBVS Camera) |
| Video output | 1‑ch BNC (CBVS Monitor) |
| Audio I/O | 1 in / 1 out RCA |
| Alarm I/O | 2 in / 4 out RS‑485 |
| Power (LAN) | 12 V, 250 mA |
| Power (WLAN optional) | 12 V, 350 mA |
| Dimensions | 134 mm × 42 mm × 107 mm (W × L × D) |
| Weight | 400 g |
| Network interface | 10/100 Base‑T Ethernet |
| Wireless (optional) | 802.11b/g |
| Video compression | MPEG‑4 / MJPEG |
| Maximum simultaneous users | 10 |
It supports MPEG‑4 and MJPEG compression formats.
