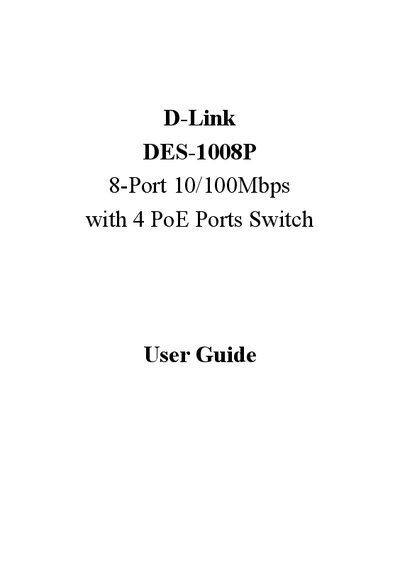

D-Link DES-1008P 8 Port 10/100Mbps with 4 PoE Ports Switch User Guide
This guide covers the D-Link DES-1008P, an 8‑port 10/100 Mbps Fast Ethernet switch with four Power over Ethernet (PoE) ports. It explains how to unpack, install, and connect the switch, and describes the front and rear panel components and LED indicators.
Key features include auto‑negotiation, IEEE 802.3af compliance, up to 15.4 W per PoE port (56 W total), and a 96 KB packet buffer. Technical specifications such as data transfer rates, power consumption, operating temperature, and physical dimensions are provided for planning and troubleshooting.
| PoE Power per Port | 15.4 W |
|---|---|
| Total PoE Power | 56 W |
| Ethernet Data Rate | 10 Mbps half‑duplex, 20 Mbps full‑duplex |
| Power Consumption (no PD) | 63 W (max) |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 171 mm × 98 mm × 29 mm |
Each PoE port can supply up to 15.4 W of power.
The switch includes a system LED, POE status LEDs for ports 1‑4, and Ethernet port status LEDs for ports 1‑8.
