This document is a technical specification description of the TZ-BCH1000 series digital audio optical cable. The product uses imported high-quality raw materials to meet the needs of various high-quality audio signal transmission.

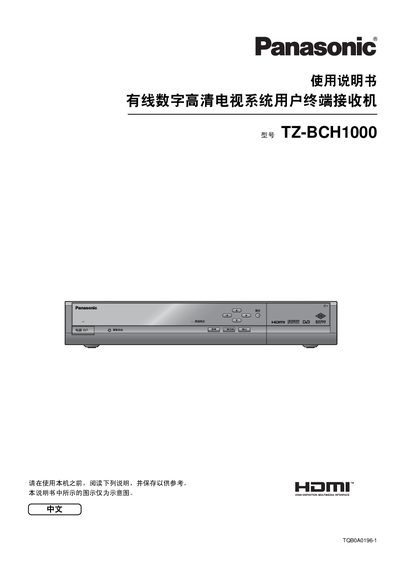

This manual covers safety precautions, proper handling, and installation requirements for the Panasonic TZ‑BCH1000 digital TV receiver. It explains how to connect antennas, HDMI, and audio outputs, and describes the front‑panel indicators and remote‑control functions.
The document also lists the technical specifications, environmental compliance information, and troubleshooting tips to help users maintain reliable performance.
| Input voltage | AC 90 V‑250 V, 50/60 Hz |
|---|---|
| Power consumption | 15 W |
| Weight | 1.9 kg |
| Dimensions (W×D×H) | 1357 mm × 245 mm × 62 mm |
| HDMI output ports | 1 |
| RCA audio output ports | 2 |
| Operating temperature range | 0 °C to 40 °C |
It operates on AC 90 V‑250 V, 50/60 Hz.
Keep at least 6 cm above and 10 cm on the sides and back of the unit.
The unit weighs 1.9 kg.
It provides one HDMI output connector.
