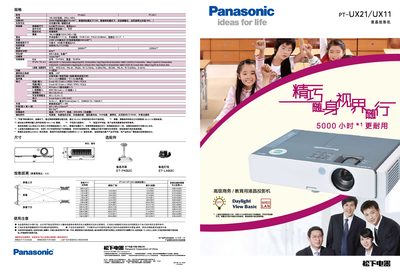

The manual provides detailed specifications for the PT-UX21/UX11 projector, including power requirements, brightness, resolution, and lamp life. It also describes the various projection modes, lens zoom, and throw ratio for flexible installation.
Safety precautions, port connections, network features, and maintenance procedures such as lamp replacement and filter cleaning are covered. Quick‑start functions and remote‑control options are explained to help users set up and operate the projector efficiently. This manual is written in Chinese.
| Power Supply | 100‑240V AC, 50/60 Hz |
|---|---|
| Power Consumption (Typical) | ≈290 W (standby 0.4 W, normal 15 W) |
| Brightness | 2600 lm |
| Contrast Ratio | 600:1 |
| Lamp Power | 220 W |
| Lamp Life | ≈5000 hours |
| Weight | ≈23 kg |
| Dimensions (W×H×D) | 307 mm × 69 mm × 210 mm |
| Throw Ratio | 1.5‑1.7:1 |
| Zoom Lens | Manual 1:1‑1:12, F2.0‑2.2 |
The lamp is rated for about 5000 hours of operation before it should be replaced.
In energy‑saving standby mode the projector consumes about 0.4 W, while normal standby uses about 15 W.
