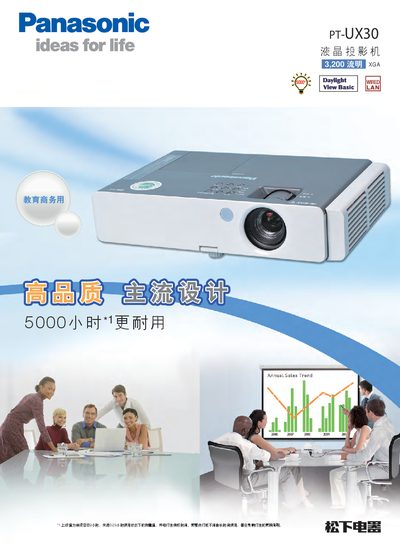

The PT-UX30 is a LCD projector with a brightness of 3200 lumens and XGA resolution. It features a high-quality mainstream design, suitable for education and business purposes. Its key characteristics include a compact size, superior performance, a 5000-hour lamp replacement cycle, and convenient management and upgrade capabilities.
The PT-UX30 is a compact, lightweight (≈2.3 kg) LCD projector with a 5000‑hour lamp life and a brightness of 3200 lm. It features Daylight View Basic for clear images in bright rooms, a low‑noise design (29 dB in eco mode), and intelligent power management to protect against voltage fluctuations.
The manual covers quick start, network connectivity (wired LAN with PJLink™ support), remote monitoring, various input ports (dual RGB, HDMI, RS‑232C, audio), and maintenance procedures such as lamp and filter replacement. It also includes environmental specifications and optional accessories for ceiling mounting. This manual is written in Chinese.
| Power supply | 100‑240 V AC, 50/60 Hz |
|---|---|
| Power consumption (typical) | 300 W (0.4 W in energy‑saving standby) |
| Brightness | 3200 lm |
| Lamp life | 5000 hours |
| Resolution | 1024 × 768 (786,432 pixels) |
| Contrast ratio | 600:1 |
| Noise level | 29 dB (eco mode), 37 dB (normal mode) |
| Weight | ≈2.3 kg |
| Dimensions (W×H×D) | 307 × 69 × 210 mm |
| Ports | Dual RGB, HDMI, RJ‑45, RS‑232C, audio in/out |
The lamp has a replacement cycle of 5000 hours.
In energy‑saving standby mode the projector consumes about 0.4 W.
Yes, it can be connected via wired LAN using PJLink™ (class 1) and monitored with dedicated software.
The projector produces about 37 dB of noise in normal mode.
