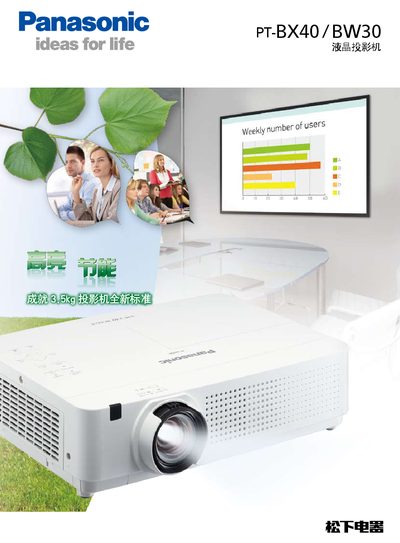

PT-BX40 / BW30 Liquid Crystal Projector is a 3.5kg compact portable high brightness projector with 4,000lm/3,000lm*3 high brightness and 2,000:1 contrast. It is suitable for a variety of applications. The product also has an intelligent bulb control system, a standby power consumption of 0.48W*5, an energy saving and emission total display, a lamp life of up to 5,000 hours*1, an air filter life of up to 6,000 hours*2, a 29-dB*4 silent design, a 10W speaker and a microphone input, a top lamp replacement method, a projector bag, a 1.6x zoom lens, and an input signal auto search and input guide function.
This manual provides detailed information on the PT-BX40 and PT-BW30 portable LCD projectors, including safety precautions, installation steps, and operating procedures. It covers the projector’s features such as intelligent lamp control, low power consumption, and dual‑screen capabilities.
The document also lists technical specifications, connectivity options (HDMI, RGB, LAN, RS‑232), and maintenance guidelines like lamp and air filter replacement cycles. Network control functions and picture‑in‑picture modes are described for multi‑projector setups. This manual is written in Japanese.
| Brightness | 4,000 lm / 3,000 lm |
|---|---|
| Contrast Ratio | 2,000:1 |
| Lamp Life (Normal/Eco) | 5,000 hours |
| Power Consumption | 322 W (standby 0.48 W) |
| Weight | 3.5 kg |
| Resolution | 1024 × 768 |
| Zoom Ratio | 1.6× |
The lamp should be replaced after about 5,000 hours of use.
In standby mode the projector consumes approximately 0.48 W.
