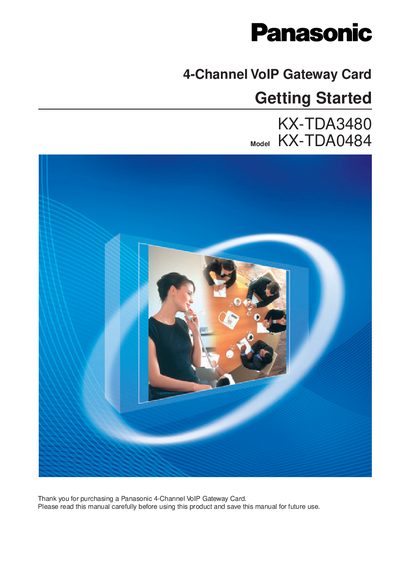

This is a Panasonic 4-Channel VoIP Gateway Card for connecting IP phones to KX-TDA30, KX-TDA100/KX-TDA200/KX-TDA600 PBX. The document introduces the function, network topology, installation steps, and programming methods of the card.
The Panasonic 4‑Channel VoIP Gateway Card enables organisations to route voice and fax over digital data networks, bridging PSTN and analogue phones with IP networks. This manual provides step‑by‑step guidance for installing the card in various KX‑TDA PBX models, configuring network parameters, and programming the device.
Key sections cover hardware installation, cable connections, IP address assignment, QSIG network integration, and considerations when using the card alongside other KX‑TDA series gateway cards. The guide also includes a network devices checklist, bandwidth assessment, and firewall advice to ensure optimal VoIP performance.
| Card IP (Los Angeles Office) | 200.45.11.35 |
|---|---|
| Subnet Mask | 255.255.255.0 |
| Default Gateway IP (Los Angeles Office) | 200.45.1.11 |
| PBX Code (Los Angeles Office) | 35 |
| PSTN Trunk Number | 9 |
| TIE Line Access Number | 7 |
| Card IP (Chicago Office) | 199.176.64.41 |
| Default Gateway IP (Chicago Office) | 199.176.64.1 |
The default IP address is 200.45.11.35.
Managed IP networks provide better quality of service than unmanaged networks.
The card supports four channels.
Use a subnet mask of 255.255.255.0.
