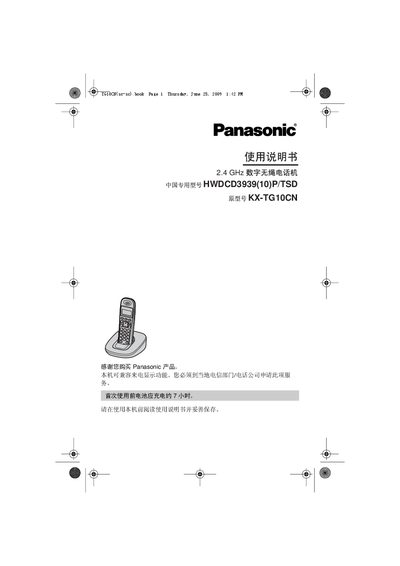

Panasonic KX-TG10CN telephone user manual, contains installation, dialing phone, answering phone, call barring, public phone book, settings, intercom call/substation paging, fault information, troubleshooting, etc.
This manual covers the installation, operation and maintenance of the Panasonic KX‑TG10CN 2.4 GHz digital wireless telephone. It includes safety warnings, battery charging instructions, and detailed descriptions of controls, display, and system settings.
The document also provides technical specifications such as operating frequency, RF power, power supply requirements, battery type, power consumption, dimensions and weight, as well as information on expanding the system with up to four sub‑handsets and using caller‑ID services. This manual is written in Chinese.
| Operating frequency | 240 GHz – 248 GHz |
|---|---|
| RF transmission power (max) | 25 mW |
| Power supply (base unit/charger) | 220‑240 VAC, 50/60 Hz, 100 mA |
| Battery type | 7号 (R03) Ni‑MH, 2 cells, 12 V, 700 mAh |
| Power consumption (standby / max) | Base unit standby ~1.2 W, max ~3.4 W |
| Dimensions (base unit) | ≈59 mm × 122 mm × 118 mm (H × W × L) |
| Weight (base unit) | ≈210 g (including AC adapter) |
The battery should be charged for about 7 hours before the first use.
It uses a 7号 (R03) Ni‑MH rechargeable battery, 2 cells, 12 V, 700 mAh.
The maximum RF transmission power is 25 mW.
