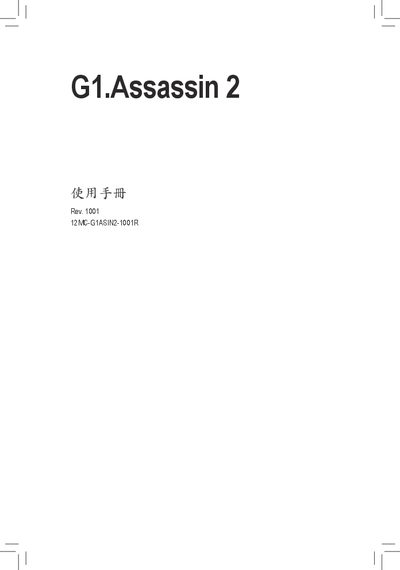

G1.Assassin 2 motherboard user manual, including hardware installation, BIOS configuration settings, driver installation, and unique feature introduction
This manual covers the G1.Assassin 2 motherboard’s hardware layout, BIOS configuration, and installation procedures. It includes detailed sections on CPU socket, memory modules, storage interfaces, audio and networking components, as well as power management and peripheral connections.
The document also provides troubleshooting tips, safety warnings, and contact information for Gigabyte support. All specifications are presented in the context of the board’s Intel X79 chipset and LGA2011 socket.
| CPU Socket | LGA2011 |
|---|---|
| Chipset | Intel X79 |
| Memory Type | DDR3 2133/1866/1600/1333/1066 MHz |
| SATA Ports | 6 × SATA 6Gb/s, additional SATA 3Gb/s |
| USB Ports | USB 3.0/2.0 and USB 2.0/1.1 |
| Audio Codec | Creative CA20K2 with Dolby Digital Live |
| Network Controller | Marvell 88E1118R |
The motherboard uses an LGA2011 socket for Intel CPUs.
It is built around the Intel X79 chipset.
The board provides six SATA 6Gb/s ports, plus additional SATA 3Gb/s ports.
Yes, it includes USB 3.0 ports alongside USB 2.0/1.1.
