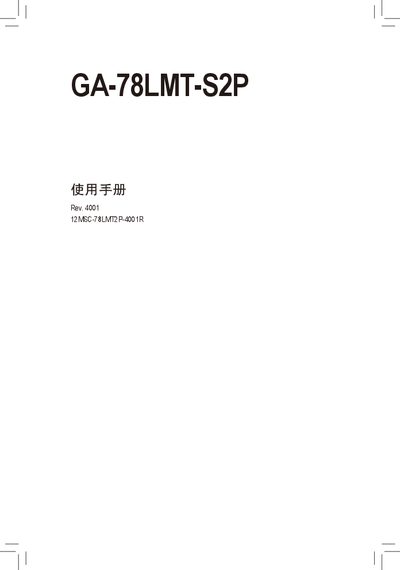

GA-78LMT-S2P User Manual, introduces the hardware installation and BIOS program settings for GA-78LMT-S2P motherboard
This manual covers everything needed to install and configure the Gigabyte GA-78LMT-S2P motherboard, including hardware installation, BIOS setup, and peripheral connections. Detailed diagrams of the board layout and connector locations are provided.
Safety precautions, FCC/CE compliance statements, and the three‑year warranty terms for the product are also included, helping users ensure proper operation and obtain support when needed. This manual is written in Chinese.
| CPU Socket | AM3+ (supports AMD AM3+ processors) |
|---|---|
| Chipset | Northbridge AMD 760G, Southbridge AMD SB710 |
| Chipset | Southbridge AMD SB710 |
| Memory Type | DDR3 1333+ |
| Graphics Outputs | 1 D‑Sub port, 1 DVI‑D port (max 1920×1200) |
| PCI Express Slots | 1 × PCIe x16, 1 × PCIe x1 (PCIe 2.0) |
| SATA Ports | 6 × SATA 3 Gb/s (RAID 0/1/10, JBOD) |
| USB Ports | Up to 8 × USB 2.0/1.1 |
It uses an AM3+ socket and supports AMD AM3+ processors.
Gigabyte offers a three‑year nationwide warranty for the GA‑78LMT‑S2P in mainland China.
It provides one PCIe x16 slot and one PCIe x1 slot, both supporting PCIe 2.0.
