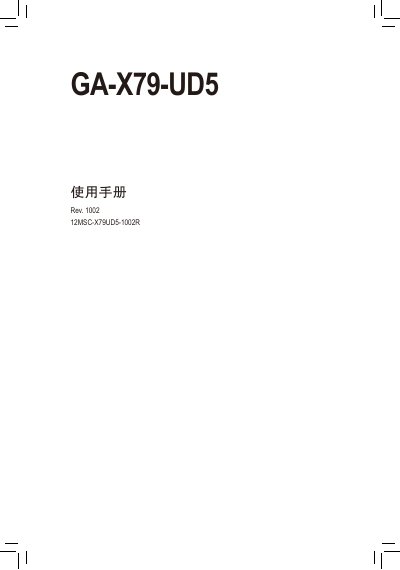

GA-X79-UD5 User Manual is the official user manual for GA-X79-UD5 motherboard released by GIGABYTE Technology. The manual introduces GA-X79-UD5 motherboard's hardware installation, BIOS program settings, driver installation and unique function introduction.
This manual provides step‑by‑step instructions for installing and configuring the Gigabyte GA‑X79‑UD5 motherboard. It covers safety precautions, CPU and cooler mounting, memory installation, expansion‑card placement, and wiring of SATA and other connectors.
The document also details BIOS configuration options, driver installation procedures, unique Gigabyte features such as Xpress Recovery and Cloud OC, and includes an appendix with troubleshooting, warranty information, and service contacts. This manual is written in Chinese.
| CPU socket | LGA2011 (supports Intel® Core™ i7 processors) |
|---|---|
| Chipset | Intel® X79 |
| Memory slots | 8 DDR3 DIMM slots, up to 64 GB |
| Supported memory speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio codec | Realtek ALC898 |
| LAN | Intel GbE (10/100/1000 Mbit) |
| PCI Express slots | 2 × PCIe x16 (x16), 1 × PCIe x16 (x8), 2 × PCIe x1, 1 × PCI |
It uses an LGA2011 socket and supports Intel® Core™ i7 processors.
The board has eight DDR3 DIMM slots and can support up to 64 GB of RAM.
The integrated audio codec is a Realtek ALC898.
