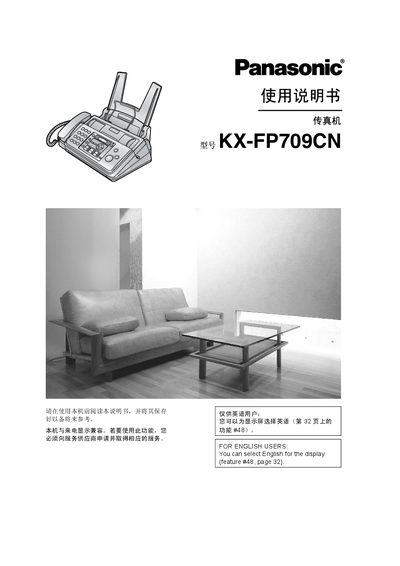

This is a Panasonic fax machine KX-FP709CN, which can select Chinese or English as the display language.
This manual explains how to install and safely operate the Panasonic KX-FP709CN fax machine. It includes safety warnings, power and grounding requirements, and guidance on handling paper, cleaning, and maintenance to prevent fire, electric shock, or damage.
The guide also covers telephone dialing, fax sending and receiving, copying, programmable functions, and how to print reports and diagnostic information. Technical specifications such as supported line type, document size limits, scanning and printing dimensions, and power consumption are listed for reference. This manual is written in Chinese.
| Supported line | Public switched telephone network |
|---|---|
| Maximum document size | 216 mm × 600 mm |
| Effective scanning width | 208 mm |
| Effective printing width | 202 mm |
| Transmission speed | ≈ 12 seconds per page |
| Scanning density (horizontal) | 8 pixels/mm |
| Operating environment | 5 °C–35 °C, 20 %–80 % RH |
| Dimensions | 185 mm × 355 mm × 272 mm |
| Power supply | 220 V–240 V AC, 50/60 Hz, 1.2 A |
Select English for the display using feature #48 (see page 32).
Use A4 paper weighing 64–80 g/m² and avoid cotton‑rich, glossy, coated, or damaged paper.
The fax transmits at approximately 12 seconds per page.
It requires a 220 V–240 V AC supply, 50/60 Hz, 1.2 A, and must be grounded.
