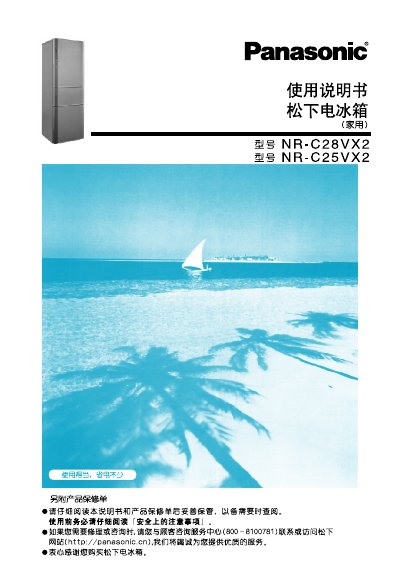

This manual provides safety precautions, installation guidelines, operation instructions, and maintenance tips for Panasonic household refrigerators NR‑C28VX2 and NR‑C25VX2. It explains the features such as the dual‑cycle cooling system, automatic ice maker, LED light fresh‑keeping, and anti‑bacterial silver ion technology.
The document also lists the technical specifications, warranty information, and troubleshooting advice, helping users set temperatures, use the freezer and vegetable compartments, and safely move or service the appliance. This manual is written in Chinese.
| Total Effective Capacity | 281 L / 251 L |
|---|---|
| Refrigerator Compartment Capacity | 172 L / 142 L |
| Freezer Compartment Capacity | 69 L / 69 L |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Cooling Capacity (24 h) | 13.0 kg |
| Rated Current | 0.95 A / 0.88 A |
| Energy Efficiency Class | 1 |
| Refrigerant | R600a (60 g) |
| Noise Level | 38 dB(A) |
| Weight | 75 kg / 72 kg |
| Dimensions (W×D×H) | 600 mm × 639 mm × 1850 mm / 600 mm × 639 mm × 1725 mm |
The NR‑C28VX2 has a total effective capacity of 281 L.
Set the temperature between –1 °C and –5 °C (or 4 °C to 2 °C) to activate the LED light fresh‑keeping function.
