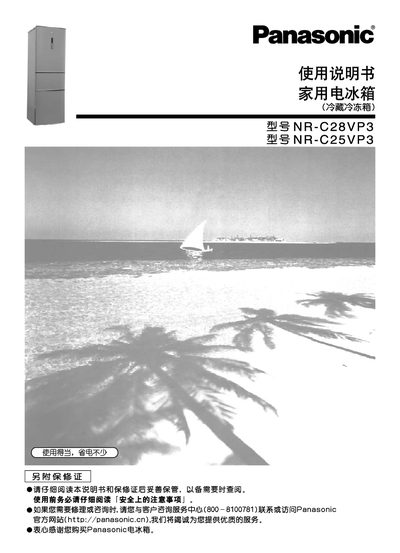

This manual covers the Panasonic NR-C28VP3 and NR-C25VP3 household refrigerator, describing its dual‑cycle cooling system, LED display, and features such as rapid freeze and antibacterial lighting. It also includes safety warnings, warranty information, and a detailed parts list.
Installation guidelines explain the required clearances (at least 4 cm on the sides and 10 cm at the back/top), proper leveling with adjustable feet, and transport precautions such as using two people and protecting the floor with a wooden board. Operational instructions cover control panel functions, door handle locations, and maintenance tips. This manual is written in Chinese.
| Total effective volume | 284 L (NR‑C28VP3) / 254 L (NR‑C25VP3) |
|---|---|
| Refrigerated compartment volume | 173 L (NR‑C28VP3) / 143 L (NR‑C25VP3) |
| Freezer compartment volume | 71 L |
| Energy consumption (24 h) | 0.73 kWh (NR‑C28VP3) / 0.71 kWh (NR‑C25VP3) |
| Energy efficiency class | 2 |
| Refrigerant type and charge | R600a, 60 g |
| Dimensions (W×D×H) | 600 mm × 650 mm × 1850 mm (NR‑C28VP3) |
| Weight | 76 kg (NR‑C28VP3) / 73 kg (NR‑C25VP3) |
Leave at least 4 cm on each side and 10 cm at the back and top to ensure proper ventilation.
Two people should transport the unit, using a protective wooden board on the floor and securing the adjustable feet and handles with tape.
Use a dedicated three‑core grounded socket and do not damage or bend the power cord.
