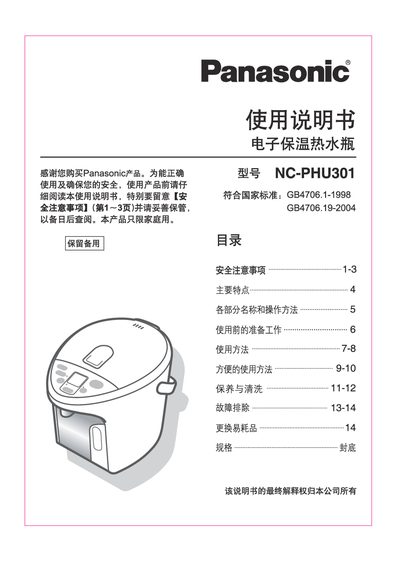

This manual explains how to safely use the Panasonic NC-PHU301 electronic insulated thermos. It covers safety precautions such as keeping the outer cover closed, avoiding tipping, and not touching the steam outlet. Detailed operating instructions include water filling, heating, dispensing, and timer settings.
The guide also describes routine maintenance, cleaning, and replacement of consumable parts like the filter and sealing gasket. Technical specifications, dimensions, power consumption, and contact information for authorized service centers are provided at the end of the document. This manual is written in Chinese.
| Rated voltage | 220V 50Hz |
|---|---|
| Rated power | 575 W |
| Dimensions (approx.) | 35 cm × 28.9 cm |
| Weight | 3.1 kg |
| Rated capacity | 3.0 L |
| Power cord length | 72 cm |
| Electric pump energy use | 1.5 Wh (3 min) |
| Overheat protection | Fuse |
| Boiling time | 23.5 min |
Remove the three screws, take off the cover, and replace the sealing gasket (part APH65-613-0S) and filter (part APB97-480-00U) as shown.
