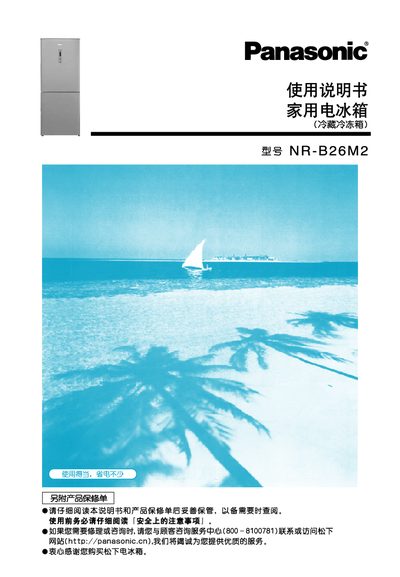

This manual explains safe usage of the Panasonic NR‑B26M2 household refrigerator, covering safety warnings, proper installation, moving and handling, and routine maintenance. It also includes a troubleshooting FAQ and warranty information.
Detailed technical data such as capacity, power consumption, energy‑efficiency class, and dimensions are listed, helping users understand the appliance’s performance and how to set it up for optimal operation. This manual is written in Chinese.
| 总有效容积 | 258 L |
|---|---|
| 冷藏室容积 | 170 L |
| 冷冻室容积 | 88 L |
| 额定电压 | 220 V |
| 额定频率 | 50 Hz |
| 制冰量 | 1.4 kg/24 h |
| 冷冻能力 | 17.0 kg/24 h |
| 额定电流 | 0.40 A |
| 灯的最大额定输入功率 | 1 W |
| 耗电量 | 0.65 kWh/24 h |
| 能源效率等级 | 1级 |
| 制冷剂及装入量 | R600a 60 g |
| 噪声值（声功率级） | 36 dB(A) |
| 重量 | 68 kg |
| 外形尺寸（宽×深×高） | 600 mm × 660 mm × 1650 mm |
Leave at least 4 cm on the left and right sides and at least 10 cm at the back and top of the unit.
A dedicated three‑core grounded socket with independent grounding is required.
The freezer can produce up to 1.4 kg of ice per 24 hours.
It is rated as energy‑efficiency class 1级.
