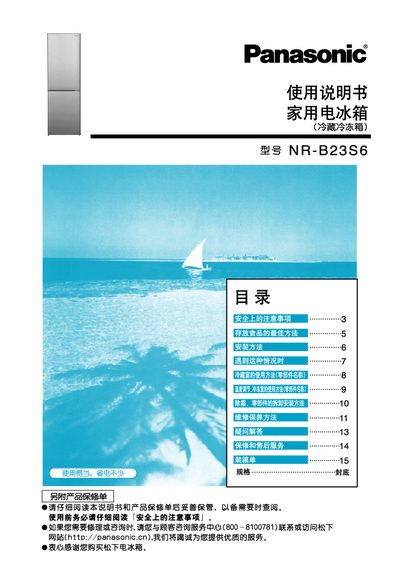

This manual explains the safety precautions and proper installation of the Panasonic NR‑B23S6 household refrigerator. It covers required grounding, spacing for ventilation, and handling instructions to prevent injury or fire.\n\nThe guide also describes how to use the fresh‑food and freezer compartments, explains moving and transport procedures, and lists the full technical specifications such as capacity, power consumption, and dimensions. This manual is written in Chinese.
| Total capacity | 227 L |
|---|---|
| Fresh compartment capacity | 147 L |
| Freezer compartment capacity | 80 L |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Ice making capacity | 1.4 kg/24 h |
| Freezing capacity | 4.0 kg/24 h |
| Rated current | 0.85 A |
| Energy consumption | 0.62 kWh/24 h |
| Energy efficiency class | Class 1 |
| Refrigerant | R600a 60 g |
| Noise level | 39 dB(A) |
| Weight | 59 kg |
Leave at least 4 cm on the left and right sides and at least 10 cm at the back and top of the unit.
The unit should be moved by at least two people, using the adjustable feet, and never carry it by the door.
