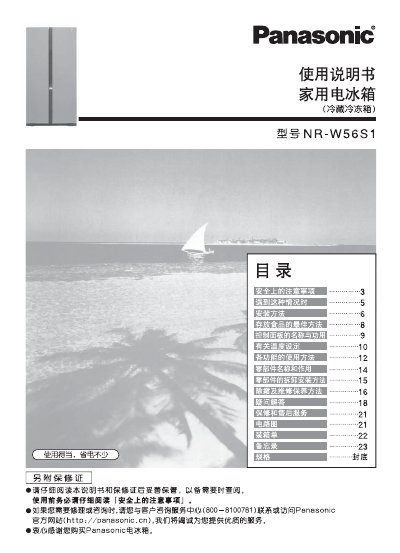

This manual covers all aspects of using the Panasonic NR‑W56S1 household refrigerator, including safety precautions, installation steps, and proper food storage methods. It also contains a wiring diagram, parts list, and warranty information.
Detailed sections guide users through adjusting the level, connecting power safely, setting temperature controls, and performing routine cleaning and maintenance to ensure optimal performance and energy efficiency. This manual is written in Chinese.
| Total capacity | 561 L |
|---|---|
| Fresh food compartment capacity | 339 L |
| Freezer compartment capacity | 222 L |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Freezing capacity | 15.0 kg/24h |
| Rated current | 1.18 A |
| Lamp max input power | 7 W |
| Power consumption | 1.12 kWh/24h |
| Refrigerant | R600a 70 g |
| Noise level | 38 dB(A) |
| Weight | 116 kg |
| Dimensions (W×D×H) | 905×710×1850 mm |
Turn the adjustable feet clockwise or counter‑clockwise until the refrigerator is level with the floor and the doors are aligned.
