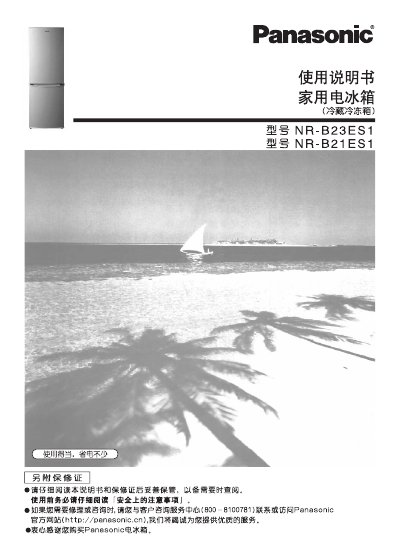

This manual explains safety warnings, installation procedures, moving and transport instructions, and operation of the Panasonic NR‑B23ES1 household refrigerator. It covers how to adjust the feet, connect the power cord, use the control panel, and perform routine maintenance.
The document also lists the technical specifications of the model, such as total and compartment capacities, power consumption, dimensions, weight, and the accessories supplied with the unit. This manual is written in Chinese.
| Total capacity | 227 L |
|---|---|
| Refrigerator compartment capacity | 147 L |
| Freezer compartment capacity | 80 L |
| Rated voltage | 220 V |
| Rated current | 0.78 A |
| Energy efficiency class | 2 |
| Refrigerant | R600a 60 g |
| Noise level | 37 dB(A) |
| Dimensions (W×D×H) | 550×622×1675 mm |
| Weight | 61 kg |
The manual advises to ensure the power circuit is properly grounded and to keep water containers off the top of the refrigerator, avoid flammable substances nearby, and protect the power cord from damage.
