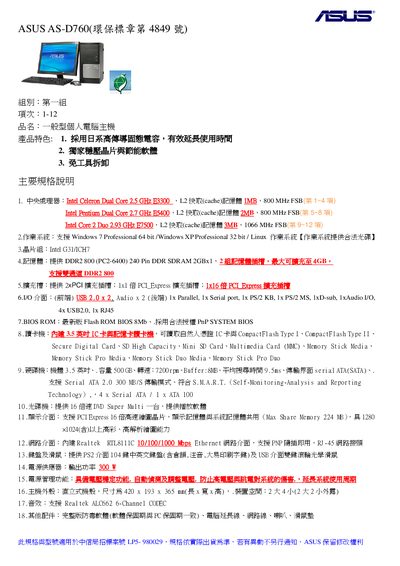

This document is about the specifications and models of the bidding case LP5-980029 of China Trust Bureau. The product is ASUS AS-D760 (Eco-label No. 4849) host, belonging to the first group of general personal computer hosts. The main features include the use of Japanese high-conductivity solid capacitors, exclusive voltage stabilization chips and energy-saving software, tool-free disassembly, etc. The main specifications include Intel Celeron Dual Core 2.5 GHz E3300, Intel Pentium Dual Core 2.7 GHz E5400 or Intel Core 2 Duo 2.93 GHz E7500 as the central processor. The operating system supports Windows 7 Professional 64 bit /Windows XP Professional 32 bit / Linux, etc. The chipset is Intel G31/ICH7, with DDR2 800 2GBx1 memory, support for maximum expandable to 4GB dual-channel DDR2 800 memory, multiple expansion slots and I/O interfaces, built-in card reader, etc.
The manual describes the ASUS AS-D760 desktop computer, highlighting its Intel processors, G31 chipset, DDR2 memory, and various storage options. It lists the supported operating systems such as Windows 7, Windows XP, and Linux, and details the I/O ports, network interface, and power management features.
Additional sections cover BIOS features like CrashFree BIOS and EZ Flash, security management, and the use of high‑quality solid‑state capacitors for reliability. The document also includes dimensions, power consumption, and optional accessories. This manual is written in Japanese.
| Chipset | Intel G31 |
|---|---|
| Memory | DDR2 800 (PC2‑6400) 2 GB × 1, 2 modules supported |
| Hard Drive | 500 GB 7200 rpm, 8 MB cache |
| Optical Drive | 16× DVD Super Multi |
| Network Interface | Realtek RTL8111C 10/100/1000 Mbps Ethernet |
| Audio Codec | Realtek ALC662 6‑Channel CODEC |
| Expansion Slots | 2× PCI, 1× PCI‑Express x16 |
| USB Ports | 4× USB 2.0 |
| Dimensions | 420 mm × 193 mm × 365 mm (W × D × H) |
It uses DDR2 800 MHz (PC2‑6400) SDRAM, with 2 GB modules and supports two such modules.
Yes, it includes a Realtek RTL8111C Ethernet controller supporting 10/100/1000 Mbps.
