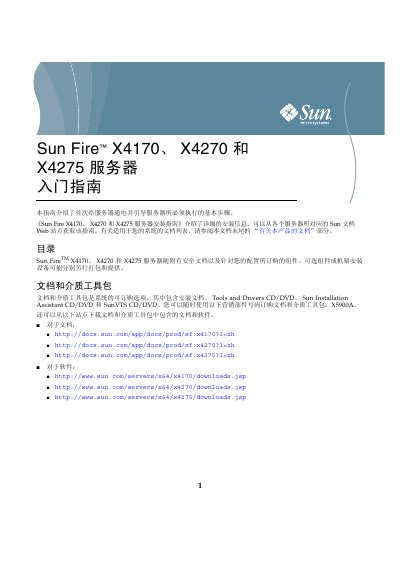

This document provides the installation guide for Sun Fire X4170, X4270, and X4275 servers, including installation steps, safety standards and compliance information, and instructions for optional components and rack installation.
The guide walks you through safety information, optional component installation, rack mounting, and cable connections required to power on the servers for the first time. It also explains how to connect to the Integrated Lights Out Manager (ILOM) and configure network settings.
Further sections cover providing main power, updating firmware with the Sun Installation Assistant, installing supported operating systems, and registering the system. Reference document numbers and links to additional resources are included at the end. This manual is written in Chinese.
| Serial Management Port (SER MGT) settings | 9600 baud, 8 data bits, no parity, 1 stop bit |
|---|---|
| Number of Ethernet ports | 4 Gigabit Ethernet ports (NET 0‑3) |
| USB ports | 2 USB 2.0 ports (0, 1) |
| Video connector | HD15 VGA connector |
You can connect to the Integrated Lights Out Manager (ILOM) using one of three methods: a serial connection, an Ethernet connection with DHCP, or an Ethernet connection with a static IP address.
Connect the power cables to the AC power connector, optionally using multiple power supplies for redundancy, and ensure the backup power is active before applying main power.
Review the "Important Safety Information for Sun Hardware Systems" and the "Sun Fire X4170, X4270, and X4275 Servers Safety and Compliance Guide" available on Sun’s documentation site.
