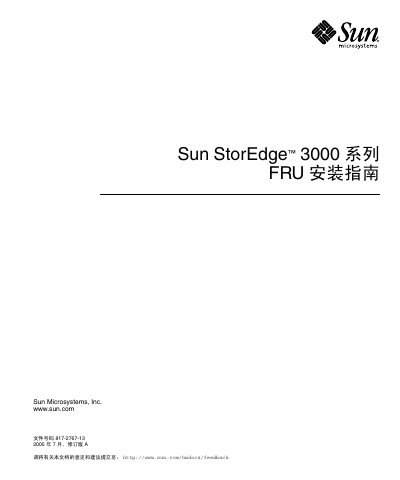

This document provides the installation guide for Sun StorEdge™ 3000 series FRU. It includes information about available FRUs, electrostatic precautions, power sequencing, and shutting down the array.
This guide provides detailed instructions for installing and replacing field‑replaceable units (FRUs) on Sun StorEdge 3000 series arrays, including front panels, disk drives, ventilation sliders, power and fan modules, batteries, LED indicator modules, and I/O controller modules. It also covers safety topics such as electrostatic discharge precautions, power‑on sequencing, and proper shutdown procedures.
The document is organized by FRU type and array configuration, offering part lists, required tools, removal and installation steps, and post‑installation verification commands. It includes specific guidance for RAID, JBOD, FC, SATA, and SCSI arrays, as well as firmware update considerations for newly installed modules. This manual is written in Chinese.
| Disk drive speed (15K model) | 15K RPM |
|---|---|
| Disk drive speed (10K model) | 10K RPM |
| Disk drive capacity (example) | 36 GB LVD |
The guide advises following static‑discharge precautions before removing or installing any FRU to avoid damage to components.
Use the Sun StorEdge CLI or Configuration Service to view battery status and set the enable date if needed.
