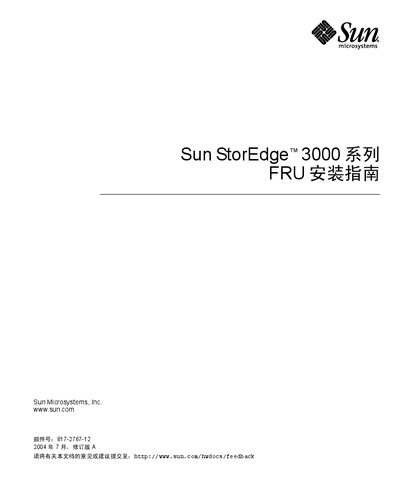

Sun StorEdge 3000 FRU Installation Guide

This manual describes how to install and replace FRUs for the Sun StorEdge 3000 series storage system.

Brand: Sun Microsystems
Category: Storage devices
Document type: Installation Guide
Language: Chinese
Pages: 90
File format: PDF
File size: 3.5 MB
Published: 12 March, 2012
Updated: 30 September, 2023
Model: StorEdge 3000
MD5 checksum: CF6D92ECE40CAD35194F2D3C2E62B056
PDF: Sun StorEdge 3000 FRU Installation Guide PDF

About this manual

This guide provides step‑by‑step instructions for removing and installing field‑replaceable units (FRU) in Sun StorEdge 3000 series arrays, including SCSI, FC, and SATA models. It covers safety precautions, power shutdown, disk drive handling, power and fan module replacement, battery servicing, and module conversions.

The document lists all available FRU part numbers, describes electrostatic safety, shows how to identify faulty drives, and explains procedures for converting rack‑mount arrays to desktop form factors. It is intended for customers and Sun service representatives who need to perform on‑site FRU changes. This manual is written in Chinese.

What's inside

Available FRU
Electrostatic Precautions
Powering Down the Array
Disk Drive FRU
Power and Fan Module FRU
Battery FRU
FC Module FRU
SCSI Module FRU
Conversion between Rack and Desktop Arrays

Specifications

FRU part number F370-6195-XX	1U JBOD, LVD, chassis with SAF‑TE IO board
Drive module F540-6054-XX	36 GB LVD, 10K RPM
Drive module F540-6058-XX	146 GB LVD, 10K RPM
Ventilation management board	Part XTA-3000-AMBS

Frequently asked questions

What electrostatic precautions must be taken before handling FRU?

The guide requires following the electrostatic precautions listed on pages 1‑4 before any FRU replacement.

How many power/fan modules are required for a 2U array?

A 2U array requires two power/fan modules.
