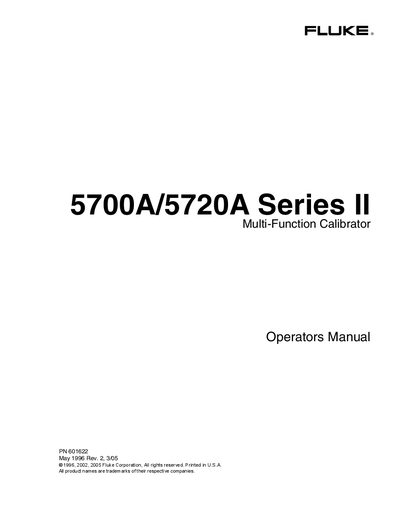

This document is the Fluke 5700A/5720A Multi-Function Calibrator Operators Manual, which provides detailed information about the product
This manual describes the Fluke 5700A/5720A Series II calibrator, a precision multi‑function source for DC/AC voltage, current, and resistance. It covers installation, front‑panel operation, remote control, and detailed calibration procedures.
Safety warnings, warranty information, specifications, and interface options such as IEEE‑488 (GPIB) and RS‑232C are included, along with troubleshooting and service guidance.
| DC Voltage Output | up to 1100 V |
|---|---|
| AC Voltage Output | up to 1100 V, 10 Hz‑1.2 MHz |
| Current Output | AC/DC up to 2.2 A, 10 Hz‑10 kHz |
| Resistance Range | 1 Ω to 100 MΩ |
| Optional Wideband AC Voltage | 300 µV‑3.5 V into 50 Ω, –57 dBm to +24 dBm, 10 Hz‑30 MHz |
Lethal voltages of up to 1100 V AC or DC may be present on the output terminals.
The warranty period is one year from the date of shipment.
The calibrator includes a standard IEEE‑488 (GPIB) interface for remote control.
