This manual introduces the operation methods and precautions of the 724 series power test instruments produced by FuGuang Electronic Co., Ltd., and is suitable for instrument users and maintenance personnel

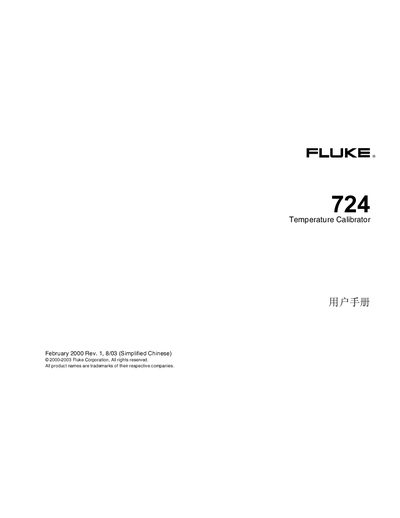

This manual introduces the Fuguang 724 temperature calibrator, describing its standard equipment, safety information, and the functions of its input/output terminals, buttons, and display. It guides users through basic operation, measurement modes, and how to adjust settings such as contrast and shutdown mode.
Additional sections cover advanced features like thermocouple and platinum‑resistance measurements, output mode configuration, step and slope adjustments, as well as storage, restoration, battery replacement, fuse replacement, cleaning, and service information. Technical specifications and compliance standards are listed at the end of the document. This manual is written in Chinese.
| Maximum Current | 22 mA |
|---|---|
| Operating Temperature Range | -10 °C to 55 °C |
| Storage Temperature Range | -20 °C to 71 °C |
| Dimensions | 96 × 200 × 47 mm |
| Weight | 650 g |
| Battery Type | 4 AA alkaline batteries |
| Safety Standards | EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992 |
The calibrator is powered by four AA alkaline batteries.
It can operate from -10 °C up to 55 °C.
It complies with EN 61010-1:1993, ANSI/ISA S82.01-1994, and CAN/CSA C22.2 No 1010.1:1992.
