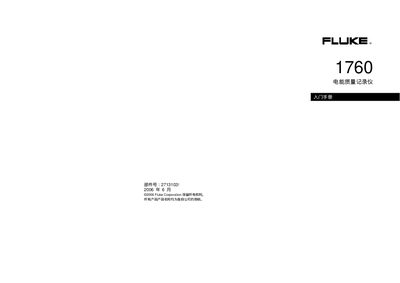

1760 Power Quality Recorder Getting Started Manual, introduces the features and characteristics of the products, such as protection level, symbols, safety operations, electrical connections, allowed accessories, operating recorders, equipment shutdown, equipment housing safety warnings, input voltage - measurement input, protection level, preparing to use the recorder, using the recorder, system requirements, software installation, start menu options, offline mode options, etc
The guide begins with safety information, protection levels, and instructions for qualified personnel. It explains how to connect the recorder to a circuit, select measurement modes such as real‑time, offline, and network, and prepare the device for long‑term recordings.
Later sections cover record‑setting options, event analysis, and how to create and export measurement reports. The manual also provides details on viewing RMS values, THD/TID harmonic data, ripple‑control signals, and transient‑trigger sampling frequencies. This manual is written in Chinese.
| Harmonic THD/TID recording interval | 3 seconds |
|---|---|
| RMS display capability | User‑defined averaging time |
| Transient sampling frequency range | 100 kHz – 10 MHz |
| Warranty period for product | 2 years |
| Warranty period for parts/software | 90 days |
Open the Options menu and select Export Options to configure and export the report.
THD/TID harmonic data are recorded every three seconds.
The recorder can sample transients between 100 kHz and 10 MHz.
