The document is a product description of Fluke's Precision Infrared Thermometer, highlighting its features and characteristics.

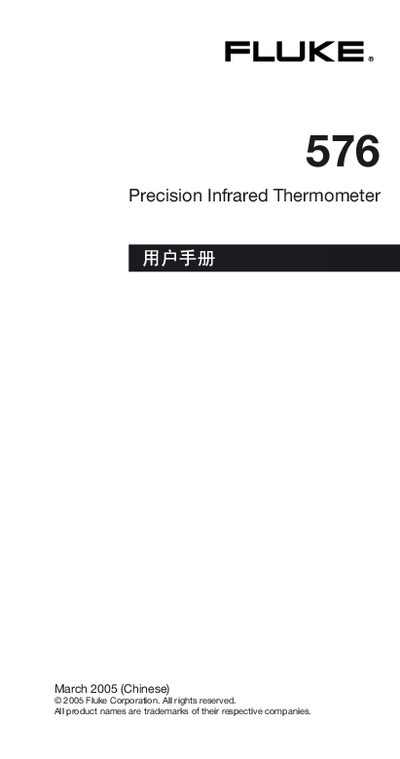

The Fluke 576 Precision Infrared Thermometer manual outlines the device's temperature measurement capabilities, accuracy, and optical performance. It includes key parameters such as a -30 °C to 900 °C range, ±0.75 %/±0.75 °C accuracy, and optical resolution options of 60:1 and 50:1.
The document also describes power requirements, physical dimensions, and data interface options, including a USB 1.1 connection for transferring images captured at resolutions up to 640×480 pixels. Operational details such as response time (250 ms) and focus distances are provided for both far and near focus modes. This manual is written in Japanese.
| Temperature range | -30 °C to 900 °C |
|---|---|
| Accuracy | ±0.75 % or ±0.75 °C (whichever is greater) |
| Optical resolution (far focus) | 60:1 at 1.15 m (spot size 19 mm) |
| Optical resolution (near focus) | 50:1 at 0.3 m (spot size 6 mm) |
| Response time (95% of reading) | 250 ms |
| Far focus distance range | 0.5 m – 2 m |
| Near focus distance range | 0.2 m – 1 m |
| Power source | 2 × 1.5 V AA batteries |
| Dimensions | 240 × 170 × 50 mm |
| Data interface | USB 1.1 |
| Image resolution (max) | 640 × 480 pixels |
| Sensitivity | 6 Lux |
It can measure temperatures from -30 °C up to 900 °C.
The accuracy is ±0.75 % or ±0.75 °C, whichever is larger.
It connects via a USB 1.1 interface.
The device has a 250 ms response time for 95 % of the reading.
