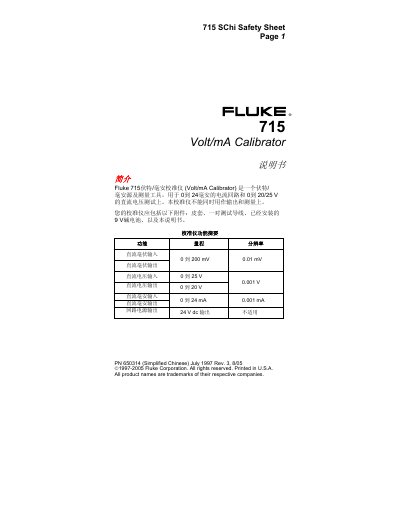

715 volt/mA Calibrator is a volt/ milliamp source and measuring tool for 0 to 24 milliamps current loop and 0 to 20/25 V dc voltage testing
The Fluke 715 Volt/mA Calibrator is a portable source and measurement tool for DC voltage (0‑25 V) and current (0‑24 mA). The manual covers safety precautions, power‑on/off procedures, output modes, HART resistor mode, range‑check functions, and maintenance guidance.
Technical specifications, environmental limits, dimensions, and warranty information are listed, along with contact details for service and parts. The document is written in Simplified Chinese with some English labels. This manual is written in Chinese.
| DC voltage input range | 0 to 25 V |
|---|---|
| DC voltage output range | 0 to 20 V |
| DC current resolution | 0.001 mA |
| Loop power output | 24 V dc |
| Input impedance | 1 MΩ |
| Operating temperature range | -10 °C to 55 °C |
| Storage temperature range | -40 °C to 60 °C |
| Dimensions (H × W × L) | 32 mm × 87 mm × 187 mm |
| Weight | 349 g |
Press the green O button to power the calibrator on or off.
Press O to turn the calibrator off, then press ] or } to adjust the shutdown timer, or press } until OFF is displayed to disable it.
Hold the V and A keys together; this toggles the 250 Ω HART resistor on or off.
Fluke provides a three‑year limited warranty covering material and workmanship, excluding the battery and damage from misuse.
