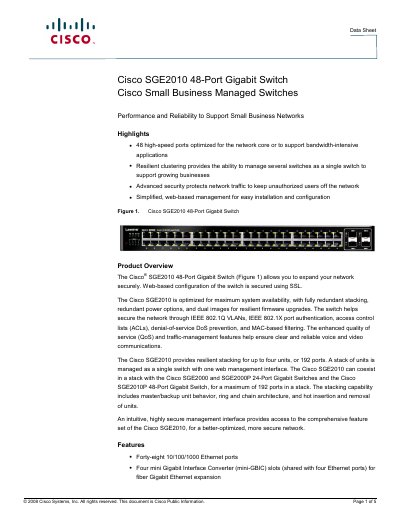

The Cisco SGE2010 48-Port Gigabit Switch is a Cisco Small Business Managed Switch that provides performance and reliability for small business networks. Key features include 48 high-speed ports, resilient clustering, advanced security, and simplified, web-based management.
The Cisco SGE2010 48‑Port Gigabit Switch is designed for small‑business networks, offering 48 high‑speed Ethernet ports and four mini‑GBIC slots for fiber expansion. It supports web‑based configuration, SSL security, and can be stacked with up to three other units for a total of 192 ports.
Key capabilities include IEEE 802.1Q VLANs, 802.1X authentication, ACLs, DoS protection, QoS, LACP link aggregation, and redundant power via the Cisco RPS1000. The switch also provides extensive management options such as SNMP, RMON, and a built‑in web UI.
| Ports | 48 RJ‑45 connectors for 10/100/1000BASE‑T plus 4 mini‑GBIC combo ports |
|---|---|
| Forwarding capacity | 71.4 Mpps (64‑byte packets) |
| Stacking ports | Up to 192 ports in a stack of four units |
| VLAN support | 256 active VLANs (4096‑range) |
| Power input | 100–240 V, 47–63 Hz, internal universal; optional external redundant supply |
| Dimensions | 17.32 × 14.70 × 1.73 in (440 × 375 × 44 mm) |
| Weight | 10.89 lb (4.94 kg) |
It provides 48 RJ‑45 10/100/1000 Mbps ports plus four mini‑GBIC combo ports for fiber.
Yes, it can use the Cisco RPS1000 380 W redundant power supply unit for power redundancy.
