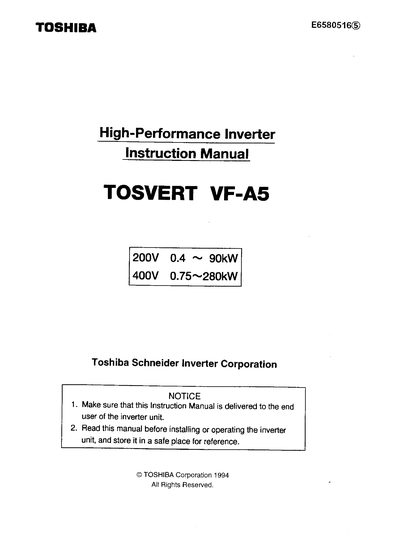

This manual provides comprehensive guidance for the Toshiba VF‑A5 high‑performance inverter, including safety precautions, installation steps, wiring details, and operation modes. It also contains sections on parameter settings, troubleshooting, and routine maintenance.
The document is organized into chapters such as Acceptance Inspection, Installation Precautions, Wiring Precautions, Operation and Adjustment, Maintenance and Inspection, and Appendices with parameter tables and changed‑settings memos.
| Capacity | 65 kVA |
|---|---|
| Rated Output Voltage | 200~230 V |
| Rated Output Current | 16.5 A |
| Applicable Motor Power | 3.7 kW (max) |
| Rated Output Frequency Range | 0.1–80 Hz |
Install a suitable non‑fuse breaker (MCCB) on the inverter’s input power source, and ensure the voltage matches the inverter’s rated range.
