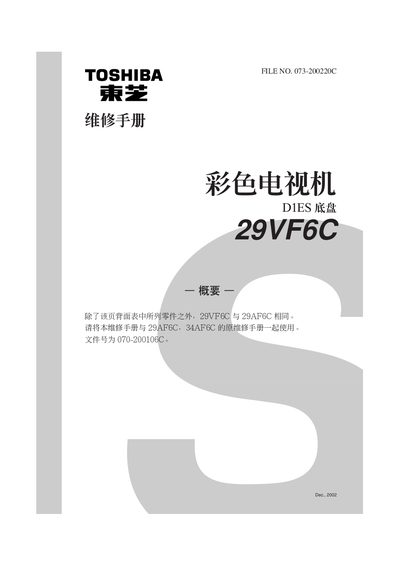

This is a maintenance manual that provides repair information for the color TV 29VF6C. It is the same as 29AF6C and should be used with the original maintenance manual for 34AF6C.
This service manual provides detailed information for repairing the Toshiba 29VF6C color television. It includes part numbers, component locations, and reference diagrams to assist technicians in diagnosing and fixing faults.
The document also lists the parts required for service, such as front and back covers, speaker units, LED boards, and control boards, along with their corresponding part numbers for easy ordering. This manual is written in Chinese.
| Front Cover Part Number | A201 23530663 |
|---|---|
| Back Cover Part Number | A401 23530698 |
| Speaker Model | SPK1410AM, 60x120 8 Ω |
| Signal Board Part Number | U902 23788419 |
The front cover part number is A201 23530663.
The signal board is identified by part number U902 23788419.
The TV uses two SPK1410AM speakers, each 60 × 120 mm and 8 Ω.
