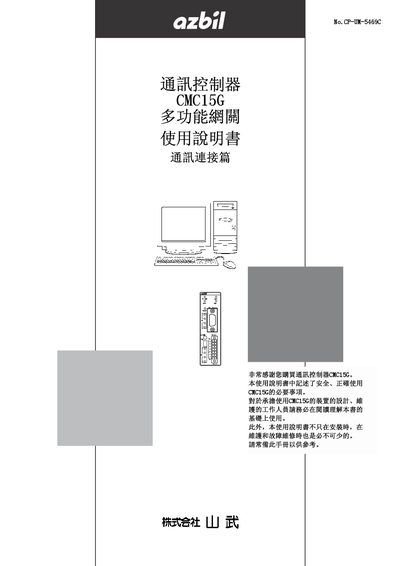

CMC15G is a Yamatake communication controller. This manual introduces the necessary information for the safe and correct use of CMC15G, including installation, setup, operation, and maintenance.
This manual explains the safe and correct use of the CMC15G communication controller. It includes safety precautions, installation steps, and maintenance guidelines for designers, installers, and service personnel.
The document is organized into three main sections: upper‑level (host) communication and serial‑slave communication, connection examples with various PLCs and devices, and detailed configuration of communication drivers and parameters. It also provides command specifications, timing details, and address settings for system integration. This manual is written in Chinese.
| Baud rate | 115200 bps |
|---|---|
| Data bits | 8 bits |
| Parity | Even |
| Stop bits | 1 bit |
| Communication interface | RS‑485 |
| Maximum connected devices | 500 |
No. The manual states the product must not be used in applications directly connected to human safety, such as aerospace, space, or nuclear equipment.
The controller can handle up to 500 devices.
Supported baud rates include 115200 bps and 9600 bps.
