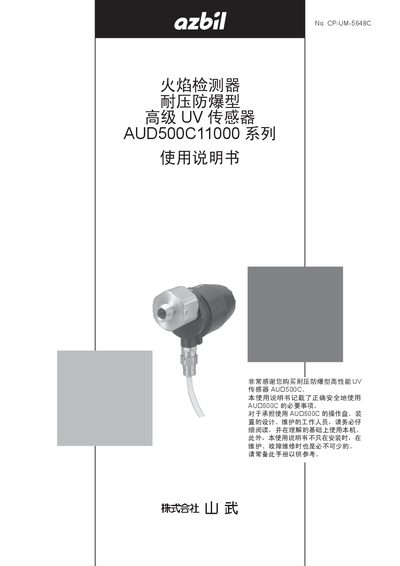

Yamatake AUD500C11000 Flame Detector User Manual

About this manual

The Yamatake AUD500C11000 is a high‑performance, pressure‑rated explosion‑proof UV flame detector. This manual provides safety precautions, installation steps, wiring diagrams, adjustment procedures, and maintenance guidelines to ensure safe and reliable operation.

It also includes troubleshooting advice, specifications, and warranty information for professional installers and service personnel. This manual is written in Chinese.

What's inside

• Overview
• Safety Precautions
• Installation
• Wiring
• Adjustment
• Troubleshooting
• Maintenance Inspection
• Specifications

Frequently asked questions

What explosion‑proof certification does the AUD500C11000 have?

It is certified with Ex d IIC T4 explosion‑proof construction.

Which sealing‑ring adapter must be used with the detector?

The supplied high‑pressure sealing‑ring adapter must be used; other gaskets are not permitted.

What is the warranty period for Yamatake products?

The warranty period is 1.5 years from purchase or delivery.

How long can the phototube and shield unit be used before replacement?

Both the phototube unit and the shield unit have a service life of 3 years.
