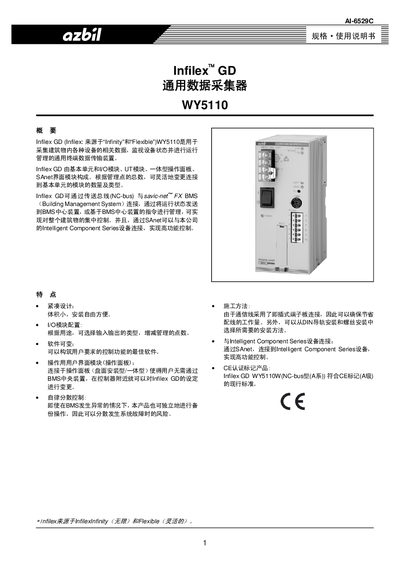

Infilex GD WY5110 is a general terminal data transmission device that collects related data of various devices in a building, monitors device status and performs operation management.
The Infilex GD WY5110 is a building‑management controller that collects and manages data from various sensors and devices. It can be configured with modular I/O, UT modules, an integrated operation panel and SAnet interface, and it communicates with NC‑bus or BACnet‑based BMS systems for centralized control.
The manual provides safety precautions, installation methods (including DIN‑rail and screw‑mount options), wiring details, component identification, and maintenance procedures such as periodic replacement of the internal capacitor (referred to as the “pool”). Technical specifications such as voltage range, power consumption, environmental limits and communication parameters are listed in the specifications section. This manual is written in Japanese.
| Rated voltage | 100‑240V AC, 50/60 Hz |
|---|---|
| Power consumption | 40 VA |
| Operating temperature | 0 °C ~ 50 °C |
| Storage temperature | -20 °C ~ 60 °C |
| Maximum humidity (operating) | 10 % ~ 90 % RH |
| Maximum humidity (storage) | 59 % ~ 95 % RH |
| Maximum altitude | 2000 m |
| Maximum vibration | 3.2 m/s² (10 Hz‑150 Hz) |
| NC‑bus communication speed | 4800 bps |
| NC‑bus maximum cable length | 500 m (up to 1000 m with repeaters) |
It operates on 100‑240 V AC at either 50 Hz or 60 Hz.
The power source must be disconnected, the unit must be de‑energized, and the replacement should be performed by qualified personnel.
Up to 25 devices can be connected on a single NC‑bus segment, with a maximum cable length of 500 m (extendable to 1000 m with repeaters).
