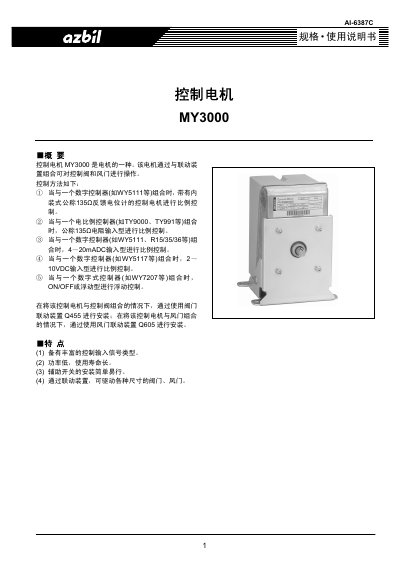

This document describes the specifications and instructions for the control motor MY3000. The motor can operate control valves and dampers when combined with a linkage device. It features a wide range of control input signal types, low power consumption, and long service life.
This manual describes the MY3000 control motor, its features, and how it can be combined with digital controllers, valve linkage devices, and wind‑door linkage devices. It outlines the various control signal types the motor accepts, such as 135 Ω feedback potentiometer, 4‑20 mA, 2‑10 VDC, and SPDT floating mode.
Safety precautions, installation guidelines, wiring procedures, and regular maintenance schedules are detailed, including recommended accessories like waterproof connectors and optional auxiliary switches. Fault troubleshooting tables and periodic inspection intervals are also provided. This manual is written in Chinese.
| Power (running, 24VAC) | ≈9 VA |
|---|---|
| Power (running, 85‑264VAC) | ≈14 W |
| IP rating | IP54 (dust and splash protection) |
| Weight | ≈3 kg |
