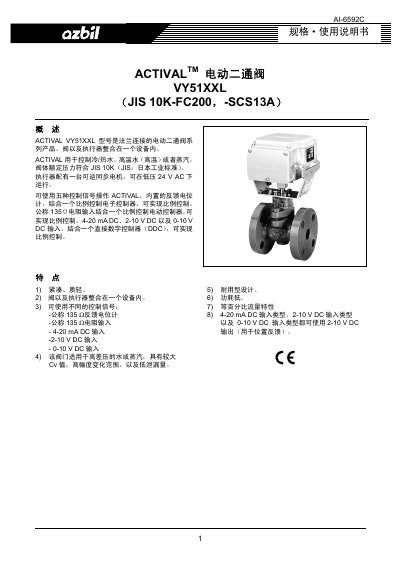

This document is about the introduction of the AI-6592C 1 specification and user manual for the ACTIVALTM electric two-way valve VY51XXL. The electric two-way valve is used to control cold/hot water, high-temperature water, or steam. It features compactness, lightness, durable design, low power consumption, and can be operated using different control signals.
The Azbil AL-6592C is a two‑port control valve designed for steam, hot‑water and high‑temperature water applications. The guide provides safety precautions, installation steps, wiring options, and maintenance procedures to ensure reliable operation.
Key sections cover rated pressure, supported input signals (4‑20 mA, 0‑10 VDC, 2‑10 VDC), dimensional data, and recommended installation environments such as indoor, outdoor, and high‑humidity conditions. This manual is written in Japanese.
| Rated pressure | JIS 10K (max 0.98 MPa) |
|---|---|
| Power consumption | 7 VA (nominal) |
| Operating temperature (fluid) | 0 °C – 175 °C |
| Humidity range | 5 % RH – 95 % RH |
It accepts 4‑20 mA DC, 0‑10 VDC and 2‑10 VDC input signals.
The valve is rated for JIS 10K, up to 0.98 MPa.
The device operates with fluid temperatures from 0 °C up to 175 °C.
