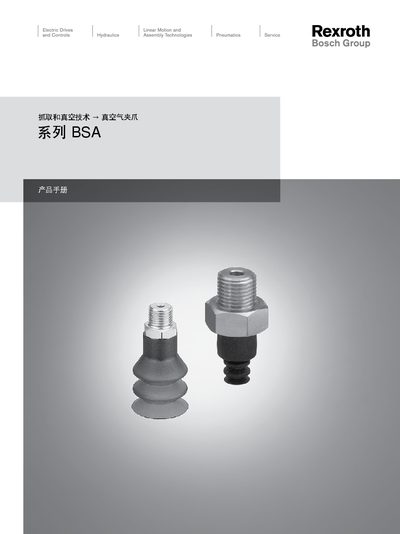

This manual introduces the BSA vacuum gripper series products, including features, characteristics, specifications and parameters.
This guide describes the Bosch Rexroth BSA series vacuum gas jaws, including their dimensions, material properties, and performance limits. It provides tables of dimensions for different jaw sizes and outlines the recommended operating conditions.
The document also contains contact information for Bosch Rexroth offices in China and Germany, and legal notices about the proprietary nature of the data. It is intended for users who need to install, operate, and maintain the BSA vacuum gas jaws in pneumatic systems. This manual is written in Chinese.
| Operating temperature (continuous) | -109 °C to +705 °C |
|---|---|
| Operating temperature (short‑term) | -30 °C to +120 °C |
| Material hardness | 55 Shore A |
| Wear resistance | 100‑120 mm |
The jaws can operate continuously between –109 °C and +705 °C.
The material hardness is 55 Shore A according to ISO 7619‑1:2010.
