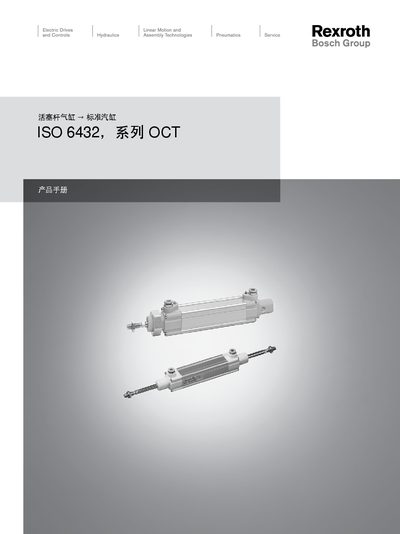

This product manual introduces Bosch Rexroth AG's ISO 6432 series OCT micro cylinders, including models, interfaces, buffers, mountings, etc.
This document presents the OCT series of piston‑rod cylinders that comply with ISO 6432. It lists the available bore sizes, stroke lengths, and basic operating principles such as single‑acting or double‑acting operation, magnetic pistons, and cushioning types.
Detailed technical data, material specifications, and a comprehensive list of optional accessories—including mounting brackets, sensor kits, and cable assemblies—are provided. Configuration tables show which options can be combined for each model. This manual is written in Chinese.
| Working pressure range | 2 bar – 10 bar |
|---|---|
| Environmental temperature range | -20°C to +75°C |
| Cylinder tube material | Aluminum, anodized |
| Piston rod material | Stainless steel |
| Maximum stroke | 50 mm |
The OCT cylinders operate between 2 bar and 10 bar pressure.
