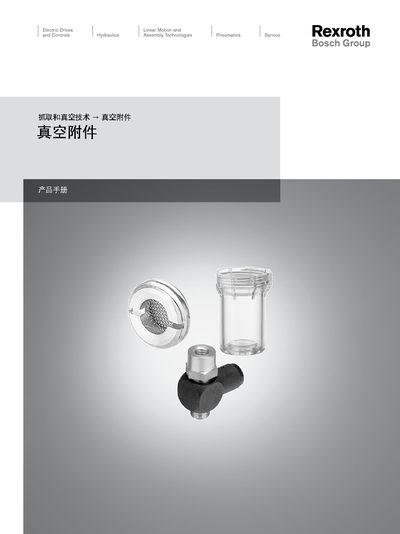

This document is a Bosch Rexroth vacuum accessories product manual, which mainly introduces the features and characteristics of adapters, online filters, spare filters, disc filters, air cups, spring plungers, angle connectors and flow valves.
The document presents the full range of vacuum‑attachment products offered by Bosch Rexroth, covering adapters, online filters, disc filters, spring push rods, angle joints and flow valves. Each series is described with material information, connection types, and part numbers.
Technical data such as filter pore size, operating temperature limits, maximum pressure ratings and weight are listed for each product, allowing engineers to select the appropriate component for pneumatic vacuum applications. This manual is written in Chinese.
| Filter pore size (VFI series) | 50 µm |
|---|---|
| Filter pore size (VFC series) | 80 µm |
| Operating temperature range | +0°C to +50°C |
| Maximum pressure at 25°C | 7 bar |
| Maximum pressure at 50°C | 5 bar |
The VFI series filters have a pore size of 50 µm.
The VFC series disc filters have a pore size of 80 µm.
They are rated for ambient temperatures from 0 °C up to 50 °C.
