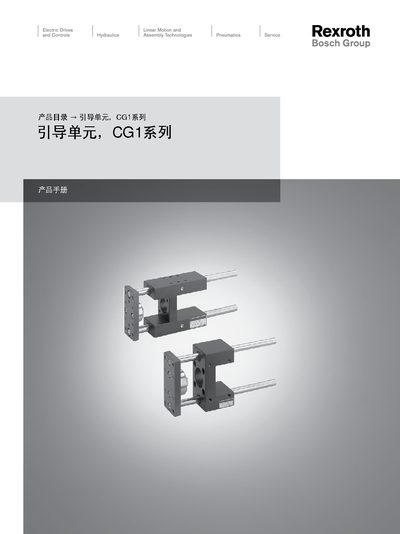

This document is the product catalog of Bosch Rexroth AG Pneumatics, which introduces the features and characteristics of CG1 series guide units and related accessories.
This document presents the technical data for the CG1 series conduction unit, a pneumatic component from Bosch Rexroth. It includes size ranges, operating temperature, weight, and part numbers for various variants.
Additional information such as contact details for Bosch Rexroth, legal notices and reference tables are also provided to help users identify the correct part and ensure proper handling.
| Operating temperature | -20°C to 80°C |
|---|---|
| Dimensions (mm) | 12, 20, 25 |
| Weight (kg) | 0.247 – 0.66 |
| Nominal size range | 12‑25 mm |
| Part numbers | 0821401095, 0821401070, 0821401080 |
The unit can be used from –20 °C up to 80 °C.
The unit is offered in sizes of 12 mm, 20 mm and 25 mm.
