This product is a one-way flow valve with a working pressure range of -- / 16 bar, an environmental temperature range of minimum / maximum -20°C / +120°C, and a minimum / maximum media temperature of -20°C / +120°C. The materials used are outer shell: stainless steel, acid-resistant, and sealing: fluoro-rubber.

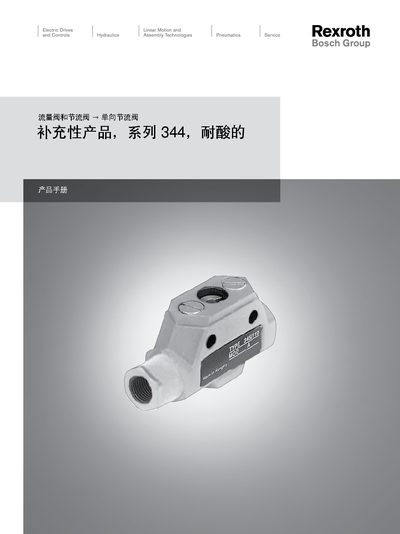

This guide describes the Series 344 unidirectional throttle valve, a corrosion‑resistant pneumatic flow control product. It operates at pressures up to 16 bar and temperatures from –20 °C to +120 °C, suitable for compressed air and oil media. The valve body is made of stainless steel with a fluorine‑rubber seal.
The document includes detailed flow‑rate tables (Qn 0.65–16 000 l/min) for various connection sizes (G 1/8 to G 1), material codes, and weight data. Contact information for Bosch Rexroth offices worldwide is provided at the end of the manual. This manual is written in Chinese.
| Working pressure range | 0 – 16 bar |
|---|---|
| Environmental temperature range | -20 °C to +120 °C |
| Medium temperature range | -20 °C to +120 °C |
| Compatible media | Compressed air, oil |
| Body material | Stainless steel (acid resistant) |
| Flow rate (Qn) range | 0.65 – 16 000 l/min |
| G 1/8 connection flow | 0.65 l/min, weight 0.13 kg |
The valve can operate from 0 up to 16 bar.
The body is made of stainless steel and the seal is fluorine‑rubber.
The flow rate ranges from 0.65 to 16 000 l/min.
