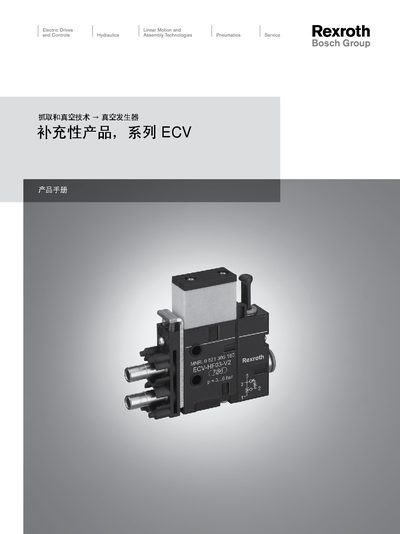

This product is a standard vacuum generator from Bosch Rexroth for the HF03 carrier system
The Bosch Rexroth ECV series vacuum generator is a standard vacuum generator designed for HF03 carrier systems. It operates with compressed air and includes options such as silencer and exhaust interfaces.
Key technical data include a working pressure range of 3 bar to 6 bar, operating temperature from 0 °C to +50 °C, a maximum vacuum degree of 76 %, and a maximum inlet flow of 63 V/min. The housing is made of reinforced polyamide, the seal uses polypropylene resin, the nozzle is brass, and the silencer is polyethylene. This manual is written in Chinese.
| Working pressure range | 3 bar / 6 bar |
|---|---|
| Operating temperature range | +0°C to +50°C |
| Medium | Compressed air |
| Maximum particle size | 5 µm |
| Oil content in compressed air | 0 mg/m³ – 1 mg/m³ |
| Nozzle diameter | 15 mm |
| Maximum vacuum degree per operation | 76 % |
| Maximum inlet flow | 63 V/min |
| Air required per operation | 116 V/min |
| Housing material | Polyamide (nylon) reinforced with glass fiber |
| Seal material | Polypropylene resin |
| Silencer material | Polyethylene |
The generator operates between 3 bar and 6 bar.
It can reach a maximum vacuum degree of 76 % per operation.
The silencer is made of polyethylene.
The device uses compressed air as the operating medium.
