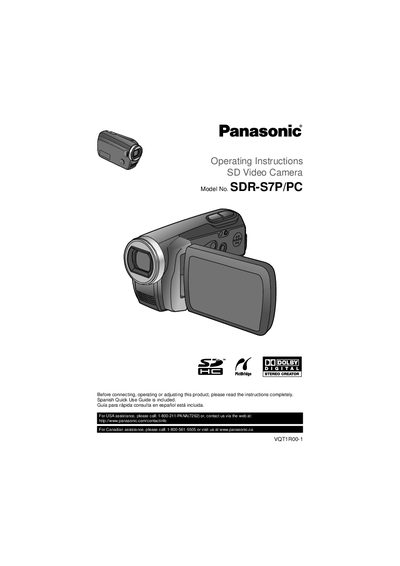

This is an operating manual for an SD video camera produced by Panasonic, including safety precautions, operating instructions and warranty information
This manual covers safety precautions, battery handling, and proper installation of the Panasonic SDR‑S7P/PC camcorder. It includes detailed instructions for charging, inserting SD cards, using the LCD monitor, and operating the various recording modes.
The document also lists technical specifications such as power requirements, sensor details, lens characteristics, and dimensions, as well as troubleshooting tips and warranty information for U.S. and Canadian customers.
| Power source | DC 5.0 V (AC adaptor) / DC 3.6 V (battery) |
|---|---|
| Power consumption | Recording: 2.9 W, Charging: 4.5 W |
| Image sensor | 1/6" CCD, 680 K total effective pixels |
| Lens | Auto Iris F1.8‑F2.4, focal length 2.3‑23 mm |
| Zoom | 10× optical zoom, 25‑700× digital zoom |
| Dimensions | 41 mm × 59 mm × 102 mm (W × H × D) |
| Weight | ≈160 g without battery, ≈182 g with battery |
It uses a lithium‑ion battery pack that is rechargeable and must be used only with this camcorder.
The camcorder provides a 10× optical zoom.
The AC adaptor operates on AC between 110 V and 240 V, but in the U.S. and Canada it must be connected to a 120 V supply.
The sensor provides 340 K effective pixels for moving pictures (4:3) and 350 K for still pictures (4:3).
