This document provides information about the August 2003 Lithium Handbook. It includes specifications and characteristics of two battery models, ML612S and ML614S. Detailed descriptions are given for their nominal voltage, nominal capacity, continuous standard load, operating temperature, and other parameters.

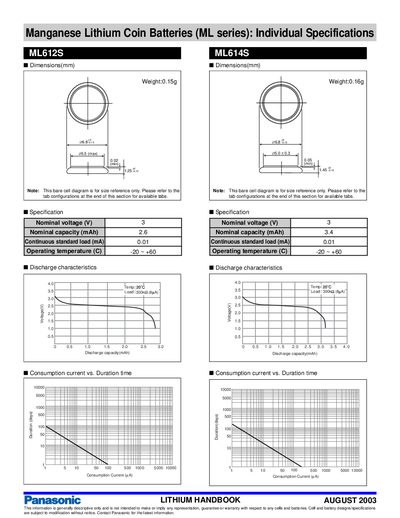

This document provides the individual specifications for Panasonic's ML612S and ML614S manganese‑lithium coin batteries. It lists physical dimensions, weight, electrical parameters, and performance curves such as discharge capacity and consumption current over time.
The data are intended for reference only; Panasonic notes that cell designs and specifications may change without notice and advises contacting the company for the latest information.
| Nominal voltage | 3 V |
|---|---|
| Nominal capacity (ML612S) | 2.6 mAh |
| Nominal capacity (ML614S) | 3.4 mAh |
| Continuous standard load | 0.01 mA |
| Operating temperature range | -20 °C to +60 °C |
| Weight (ML612S) | 0.15 g |
| Weight (ML614S) | 0.16 g |
Both batteries have a nominal voltage of 3 V.
The batteries operate from –20 °C up to +60 °C.
ML612S has a nominal capacity of 2.6 mAh, while ML614S has 3.4 mAh.
