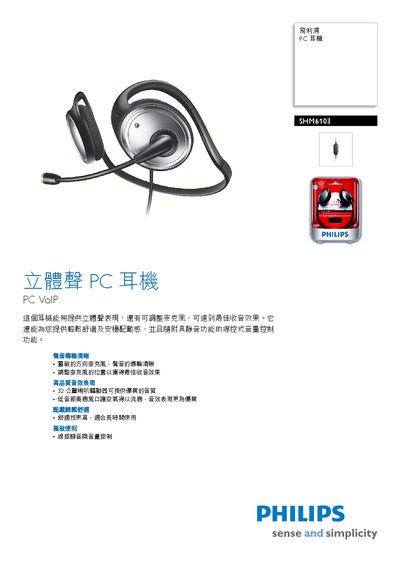

Philips PC headset SHM6103 is a stereo PC headset that provides clear sound transmission, high quality audio performance and comfortable wearing feeling.
This manual describes the Philips SHM6103 PC earphone, a stereo headset with an adjustable microphone and built‑in line‑control for mute and volume. It explains how to wear the earphone comfortably, adjust the microphone for optimal sound pickup, and use the control functions without needing an external device.
The document also lists the technical specifications, packaging details, and release information, helping users understand the performance characteristics such as frequency response, impedance, and power handling. This manual is written in Chinese.
| Frequency response | 12 – 22 000 Hz |
|---|---|
| Impedance | 24 Ω |
| Maximum power input | 100 mW |
| Sensitivity | 106 dB |
| Speaker diameter | 32 mm |
| Cable length | 2 m |
| Connector type | 2 × 3.5 mm |
Adjust the microphone position to achieve the best audio pickup.
The earphone covers a frequency range from 12 Hz to 22 kHz.
